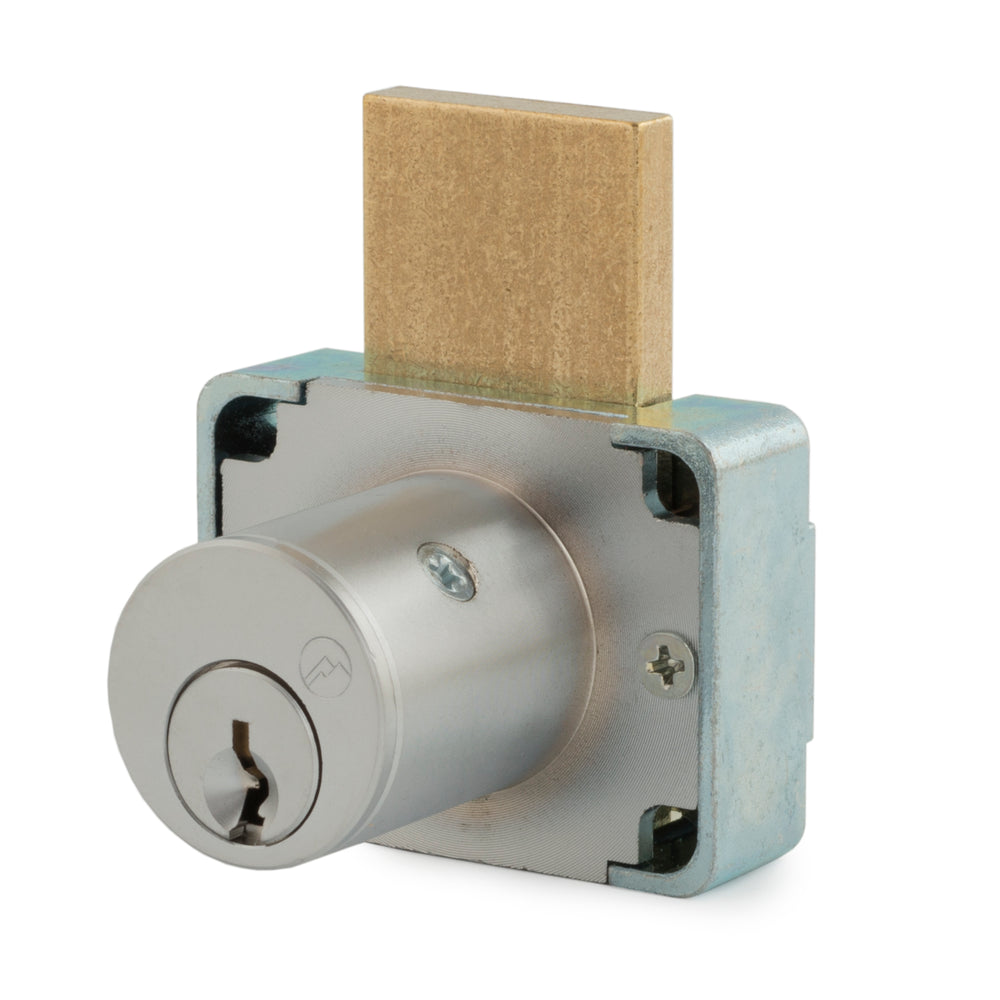

Olympus Lock 200DW Pin Tumbler Cabinet Drawer Deadbolt Lock



The Olympus Lock 200DW is a pin tumbler cabinet drawer deadbolt lock which conforms to ANSI/BHMA A156.11 Grade 1, E07041 standards. Offered as a value priced alternative to commercial keyway or interchangeable core locks. The N series locks use the National D4291 (4 pin) or D4292 (5 pin) key system.

$100 minimum order on all lock products

Looking for a Specific Olympus Lock Product Code? Call (800) 413-9715 or email us for Pricing

Olympus 200DW Deadbolt Lock

  • Model: 200DW (multiple finishes and keying options available)
  • Series: N (National Keyway)
  • Lock Type: Drawer deadbolt lock
  • Need a Written Quote? Request Online >
  • Volume Pricing on Orders $5,000+
  • Expedited Shipping Available
  • Questions? Call (800) 413-9715

Why Buy Locks from Redmond Supply?

  • We’re Local
  • We work closely with the manufacturer Olympus Lock. Our offices are located less than 10 miles from their Lynnwood, WA headquarters. This allows for us to have direct access to real time order updates and rapid manufacturer product support for our customers. Our strong relationship with Olympus Lock coupled with our customer focused approach helps to ensure that your order is pulled correctly and shipped on time.
  • We’re Competitive
  • We strive to keep our prices as competitive as possible. See a lower price somewhere else? We will do our very best to match and in most cases beat any advertised or quoted price.

  • We’re Fast
  • We take order fulfillment seriously. We are quick to process your order and in most cases ship same day. Have an order related question? We’re just a phone call away.

General Features

  • N Series - National Keyway
  • 200DW deadbolt drawer lock
  • Easily rekeyable via set screw cylinder release mechanism
  • Solid brass pin tumbler cylinder drilled for 5 pins
  • For MRI locks see 200M.
  • For weather resistant locks see 200B.
  • ANSI/BHMA No. E07041 (Grade 1)
  • Barrel lengths: 15/16", 1-3/8" or 1-5/8" (specify barrel length when ordering)
  • Barrel diameter: 7/8"
  • Standard function: locks are non-handed with key removable in the locked and unlocked position.
  • Optional key-retaining* function: Specify 200KV for vertical-hand or 200KI for inverted hand. NOTE: Specify vertical hand or inverted hand for key-retaining function only.
  • Optional extended bolt - specify -LB option
  • 26D, US4 or 10B finish
  • Includes 12-3 angle strike
  • US Patent Nos: 4,899,563; 4,920,774
  • *Key-retaining = key removable in locked position only.
  • WARNING (Proposition 65)

Finishes Available

(Satin Chrome Plated)

(Satin Brass)

(Oil Rubbed Bronze)


  • ANSI/BHMA A156.11 Grade 1 (E07041)


  • N Series: National keyway
  • National D4291(4-pin) or D4292 (5-pin) keyway
  • KD/KA - 4 pin standard
  • KA# 101, 103, 107, 915
  • Master keyed - 5 pin standard
  • Use N1 Pin Kit for rekeying
  • 4-pin keyblank = KBN-4-NP (equivalent to NA14, 1069L)
  • 5-pin keyblank = KBN-5-NP (equivalent to NA12, 1069LA)



200DW Standard Dimensions
